Circuit identification
Breaker ID Tags
Circuit breaker labels for the breaker box or panel: numbers, feeders and loads
Custom Engraved Breaker Labels
Breaker Labels
Every circuit named where the next electrician will look.
Must stay on
Life-Safety Circuits
Fire alarm, emergency lighting, sump pumps: red so nobody shuts them off
Critical power
Data Centre Feeds
UPS, PDU and RPP breakers, A side and B side
Sizes and colours
Compare Label Sizes
From a 1 in handle tag to a 6 × 3 in switchboard plate
Labels
Ready-Made Labels, Breakers First
149 engraved labels in 9 categories: breakers, panels, data centres, MCCs, arc flash, lockout, solar and EV. Each one is checked against the laser file and opens in the label maker to edit.
Browse All LabelsBreaker labelsCEC Rule 2-100 circuit identification18 labelsPanel & breaker IDCEC equipment identification20 labelsData centres & UPSCritical power ID16 labelsMotor control & equipmentEquipment ID17 labelsElectrical code & equipmentCEC · CSA Z46216 labelsLockout & isolationCSA Z46015 labelsSolar PV & storageCEC Section 6420 labelsAll 9 categories149 labelsBrowse everything

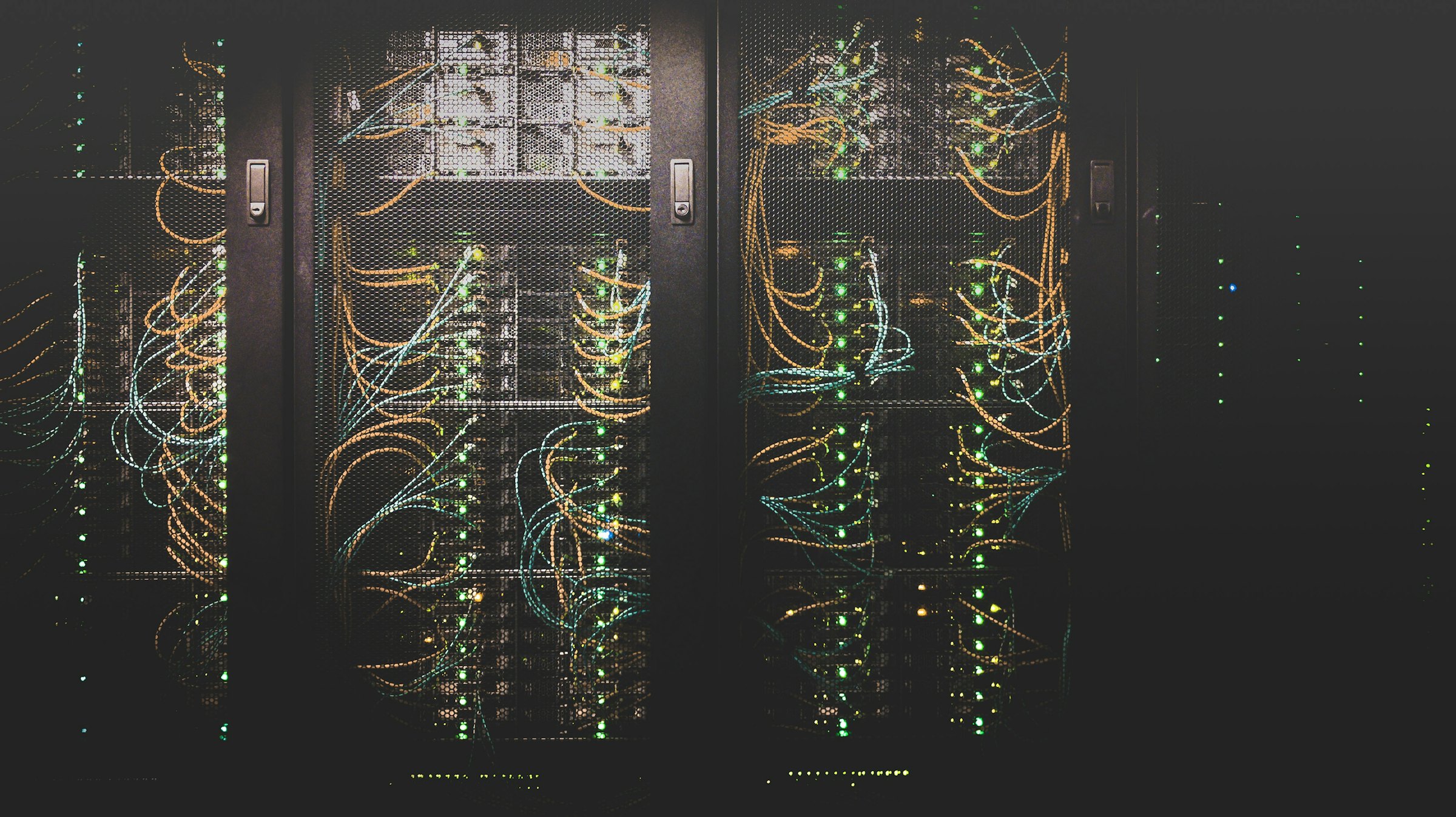

Labels for the White Space and the Rooms Behind It
Racks, PDUs & Whips
Blue for A, red for B, the same on every rack, PDU and whip so a tech never pulls the wrong feed.
A & B Feed Labels
UPS, STS & Switchgear
Unit ID, rating and source on every UPS module, static switch, ATS and remote power panel.
Critical Power ID
Whole-Room Schedules
Send the one-line or the panel schedules. We engrave every label as a matched set and ship it sorted by room.
Send Your Schedule
Breaker Labels for Every Kind of Job
Electrical Contractors
Panel schedules turned into engraved tags for new builds, retrofits and inspection punch lists.
Send a Schedule
Data Centres
A and B feeds, UPS, PDU and RPP labels, engraved as one matched set per room.
Learn More

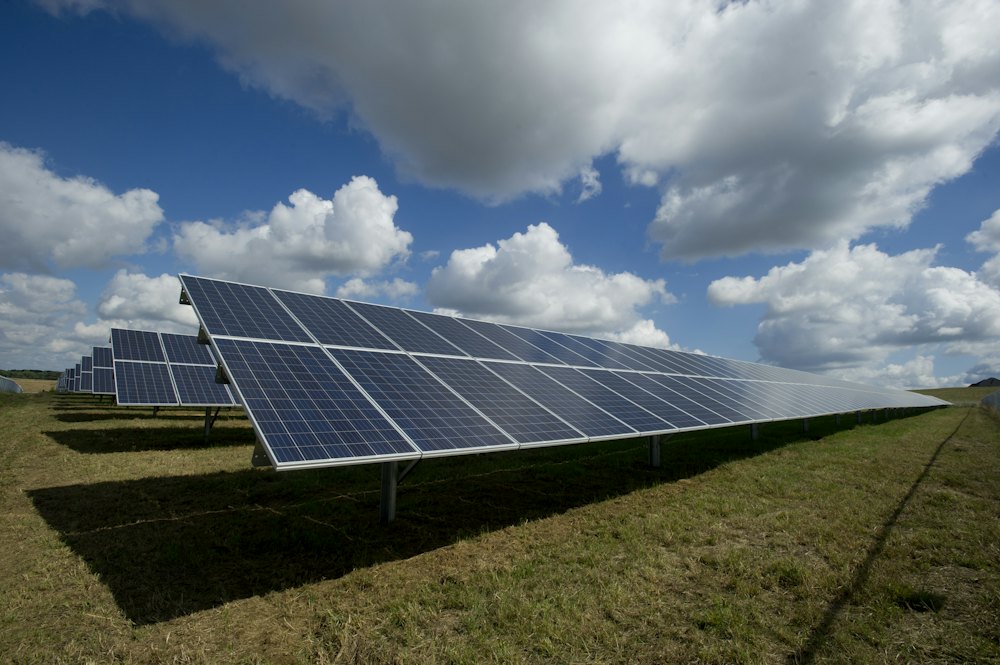

Solar & EV
Backfed PV breakers, EV charger circuits and rapid shutdown labels.
Browse
Breaker Label Maker
Design Your Own Breaker Labels
Type the circuit, pick a size and colour, and order. The preview is drawn from the laser file we cut, and the price updates as you type.
- Sizes from a 1 in handle tag to a 6 × 3 in switchboard plate
- Black, red, blue, green and every other stocked colour pair
- Two screw holes, an adhesive back or both
- A to-scale proof by email before anything is cut
3 × 1 inBlack / White2 holesBevelled edge
Questions
Engraved Breaker Labels, Answered
Still unsure? Call 289-275-9572 or send your schedule through the quote form below.
How do I label a breaker box?
Turn on every light and outlet, then switch breakers off one at a time and note what goes dark. Give each breaker its circuit number and load (CCT 14 KITCHEN COUNTER, RTU-1), mark spares as SPARE, and use red for anything that must stay on. Then engrave the list so it outlives the pencil on the door.
What should a breaker label say?
The circuit number or numbers, and what the breaker feeds: RTU-1, LP-2A, EV CHARGER 1. For feeders and mains add the rating and where it is fed from. The Canadian Electrical Code (Rule 2-100) asks for every circuit to be identified, and an engraved tag is the label that is still readable at the next inspection.
What is a lamacoid breaker label?
A lamacoid is a two-ply engraving laminate: a coloured top layer over a contrasting core. The laser cuts through the top layer to expose the core, so the lettering is part of the tag instead of ink or vinyl sitting on top of it. No fading, no peeling, no smudged marker.
Which colour should breaker labels be?
Black with white letters is the usual standard for breaker and panel ID. Red is used for fire alarm, emergency and do-not-turn-off circuits, and in data centres blue and red mark the A and B feeds. Follow your spec where it names colours; every stocked pair is available.
How fast can I get breaker labels?
Most orders are cut the same day you approve the artwork proof. Pick up free in Burlington, or ship anywhere in Canada by Canada Post.
Can you label a whole panel or data hall from my schedule?
Yes. Send the panel schedules or one-line through the quote form and we engrave every label as a matched set, one size and one letter height, sorted by panel or room.
Is there a minimum order?
No. Order one label or a few hundred. Standard shipping is free on orders of $200 or more before tax.
